SSB Electric Steam Boilers: Specifications
SSB Electric Steam Boilers: Specifications
*Single phase available.
#Other voltages available.
##With 50°F feedwater.
NOTE:
- All wetted metal parts are stainless steel. Consult Factory for specific wetted parts materials.
- Allow 21 inches for heating element removal When ordering: specify model number, KW, volts, phase and optional equipment.
- Minimum of 1 meg ohm-cm specific resistivity deionized water feed water must be used for proper & safe boiler operation.

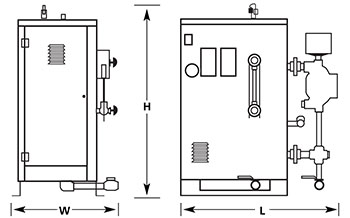

Boiler Model | KW* | Bhp Rating | Lbs/Hr. Steam** | 3 Phase Voltage *** | Total Amp Draw | Dimensions Inches W L**** H | Shipping Weight (Lbs.) | ||
---|---|---|---|---|---|---|---|---|---|
SSB-12* | 12 | 1.22 | 36.2 | 208 240 480 |
34 29 15 |
20 | 28 | 36 | 260 |
SSB-18* | 18 | 1.84 | 54.2 | 208 240 480 |
50 44 22 |
20 | 28 | 36 | 270 |
SSB-24* | 24 | 2.45 | 72.3 | 208 240 480 |
67 58 29 |
27 | 33 | 45 | 330 |
SSB-30* | 30 | 3.06 | 90.4 | 208 240 480 |
84 73 37 |
27 | 33 | 45 | 340 |
SSB-36* | 36 | 3.67 | 108 | 208 240 480 |
100 87 44 |
27 | 33 | 45 | 350 |
SSB-48 | 48 | 4.89 | 145 | 208 240 480 |
128 111 56 |
27 | 33 | 45 | 365 |
SSB-60 | 60 | 6.12 | 181 | 208 240 480 |
167 145 73 |
27 | 33 | 45 | 410 |
SSB-72 | 72 | 7.35 | 217 | 208 240 480 |
200 174 87 |
27 | 33 | 45 | 420 |
SSB-100 | 108 | 11.0 | 325 | 208 240 480 |
284 246 123 |
28 | 34 | 59 | 675 |
SSB-135 | 144 | 14.6 | 433 | 208 240 480 |
400 347 173 |
30 | 36 | 61 | 785 |
SSB-160 | 158 | 16.1 | 475 | 240 480 |
379 190 |
30 | 36 | 61 | 785 |
SSB-180 | 180 | 18.4 | 542 | 240 480 |
434 217 |
30 | 36 | 61 | 790 |
