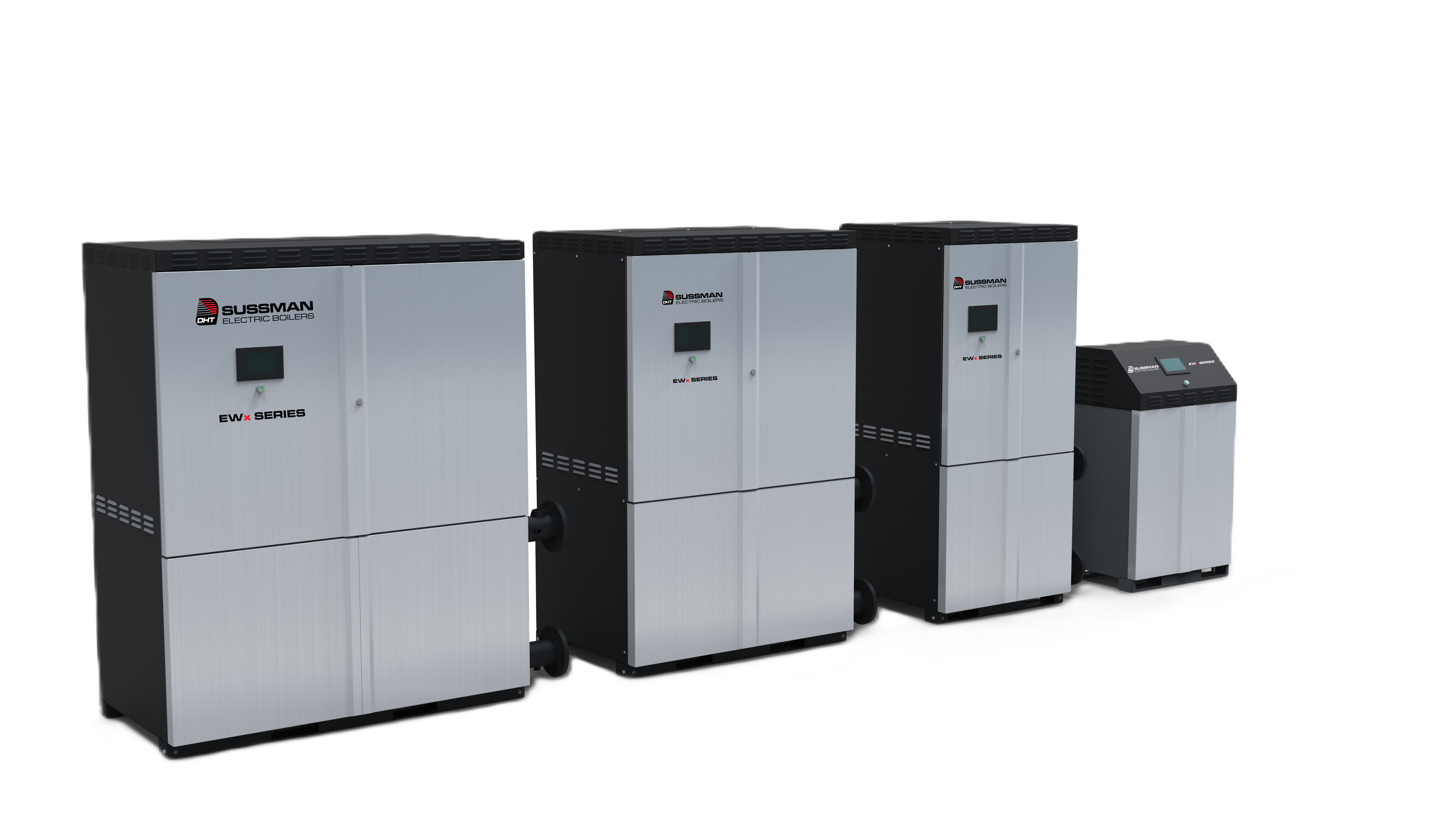

EWx Series Electric Hot Water Boiler

Wednesday, April 24, 2024 8:04:00 AM

The Sussman EWx Series next generation Electric Hot Water Boiler is a compact, environmentally friendly electric boiler that offers a smart and sustainable heating solution. Its small size allows for easy retrofitting into modern boiler systems, making it a popular choice for those looking to transition to a hybrid or complete electric hydronic heating system. The EWx features state-of-the-art connectivity, a user friendly interface, and proven technologies, ensuring optimal efficiency and reliability. Engineered for easy installation, it is available in a large range of sizes, making it suitable for a variety of different heating needs. From the very beginning, the product was designed to meet or exceed the swiftly evolving regulations and standards governing building electrification and decarbonization. It is an ideal option for those who prioritize sustainability and energy efficiency. Our new EWx hot water boiler offers a clean and efficient heating solution for modern building designs.

FEATURES:

Size Range: 32 sizes from 270kW to 1200kW (903 MBH - 4013 MBH)
Compact footprint - All sizes fit through standard 36" wide doorway
SCR standard for infinite turn-down, reduced cycling and extended component life
Fully packaged solution for quick and easy installation
Right and Left units for zero side clearance, multiple unit installation
Smallest installed footprint with 2 inch clearances on two sides, service from only one side and no overhead service clearance required
NEW Advanced Electronic PID controls with 7" touchscreen user interface - compatible with Building Management System via builit-in BacNet or ModBus (IP and MSTP)
Approvals/Standards: UL834, ASME Section IV and ASME CSD-1 compliant
5kA standard with optional 100kA SCCR
Maximum operating temperature 230 degrees Fahrenheit
ASME 150 PSI maximum pressure
Suitable for glycol systems
10 year warranty
Designed and assembled in USA
