Bakery Oven & Proofer Applications2
Bakery Oven & Proofer Applications
MBA & ES ELECTRIC STEAM BOILERS FOR THE BAKING INDUSTRY
Consult Factory for Higher KW Ratings.
Available in any Voltage/Phase.
| EQUIPMENT | CAPACITY | MODEL | KW | TYPE | WT |
|---|---|---|---|---|---|
|
SINGLE DECK OR CONVECTION |
6 BUN PAN | MBA6 | 6 | A | 125 |
| 9 BUN PAN | MBA12 | 12 | A | 125 | |
| 12 BUN PAN | MBA18 | 18 | A | 125 | |
|
MULTIPLE DECK OR CONVECTION |
9 OR 12 BUN PAN | MBA12 | 12 | A | 125 |
| 18 BUN PAN | MBA20 | 20 | A | 125 | |
| 24 BUN PAN | ES24 | 24 | B | 300 | |
| 30 BUN PAN | ES48 | 46 | B | 315 | |
| ROTARY | 9 OR 18 BUN PAN | MBA18 | 18 | A | 125 |
| 24 BUN PAN | ES24 | 24 | B | 300 | |
| 36 BUN PAN | ES48 | 46 | B | 315 | |
| REVOLVING | 15 OR 20 BUN PAN | MBA18 | 18 | A | 125 |
| 24 BUN PAN | ES24 | 24 | B | 300 | |
| 36 BUN PAN | ES48 | 46 | B | 315 | |
| 48 BUN PAN | ES60 | 58 | B | 380 | |
| PROOF BOXES | UP TO 450 CU FT | MBA12 | 12 | A | 125 |
| UP TO 1000 CU FT | MBA20 | 20 | A | 125 | |
| UP TO 2600 CU FT | ES48 | 46 | B | 315 |

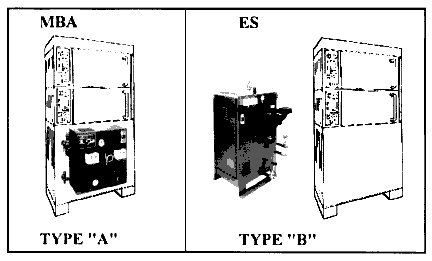

| DIMENSION | TYPE "A" | TYPE "B" |
|---|---|---|
| L | 15-3/4" | 33 |
| W | 20-1/2" | 23 |
| H | 17-7/8" | 44 |
